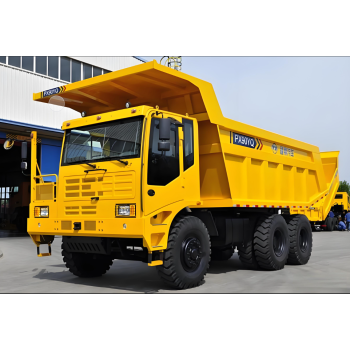

Powerful Used Mining Dump Trucks with a 30-70 Ton Capacity
- group name
- Mining Machinery
- Min Order
- 1 piece
- brand name
- Yitongda China Used Cars for Sale
- Nearest port for product export
- CHINA CN, CNNSA, CNSZN, CNTXG
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sun, 14 Sep 2025 00:18:53 GMT
Packging & Delivery
-
Min Order1 piece
Briefing
The total mass of this model reaches 90,000kg, which is one of the wide-body dump trucks with the largest load capacity in China.
Detailed
Power Performance
Equipped with the Weichai WP13G530E310 engine, it offers powerful performance, meeting the demands of loads between 30 and 70 tons. It is particularly well-suited for operating on slopes in mining areas, maintaining stable power even when fully loaded uphill.
Frame Design
Adopting a subframe-less structure (integrated main and subframe design), it optimizes vehicle layout and reduces weight, while also improving load capacity and impact resistance.
Reliability
Equipped with a welded box-beam integral frame for enhanced structural strength. The rear suspension system utilizes a 130mm diameter balance shaft, ensuring operational stability and durability.
Operational Convenience
The patented shift mechanism simplifies operation and enhances the driving experience.
The total mass of this model reaches 90,000kg, which is one of the wide-body dump trucks with the largest load capacity in China. It is suitable for complex working conditions such as mining, water conservancy and hydropower.
configuration parameter
| PX90MT Wide Body Mining dump truck configuration quotation table | |
Type | PX90MT |
Driving Cab | Mine wide-body cab (left-hand drive) |
Engine Type/ Horsepower | WeiChai WP12G460E310 |
Transmission Type | FAST 7DS220 |
Steering Engine | Hydraulic power steering gear |
Front/rear axle | PX19Tcasting steel front axle/PX 35T casting dual reduction middle/rear axle |
Frame | Welded Semi-rigid cube type frame 480*140 |
Container size(mm) | 5850*3200*1750 |
Description | bottom plate is 16mm, side plate is 12mm, and HYVA oil cylinder is lifted in front, and the mine square box is used |
Tyre | 14.00R25 Mine tire |
Front/rear suspension | Whole welded equalizing suspension, reinforced removable equalizing shaft |
Others | Three-stage desert filter, exhaust braking,Stone remover,Chassis protection,Fuel tank protection, Battery case protection,Relay waterproof protection, Rear view mirror reinforcement,LED Sidelight and tailligh,Heating of container floor of mine card |
Curb Weight(kg) | 32000 |
Rated load(kg) | 60000 |
Rated total weight(kg) | 92000 |
Max speed(km/h) | 40 |
Min ground clearance(mm) | 435 |
Min turning radius(m) | ≤12 |
| Max gradeability(%) | 33 |
| Axle base(mm) | 3800+1560 |
