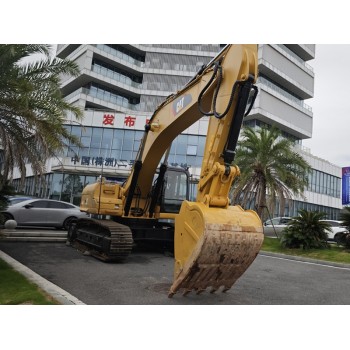

Kate excavator 336D2 China second-hand excavator export
- group name
- Building Machinery
- Min Order
- 1 piece
- brand name
- Yitongda China Used Cars for Sale
- Nearest port for product export
- CHINA CN, CNNSA, CNSZN, CNTXG
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Tue, 01 Jul 2025 17:53:03 GMT
Paramtents
Machine working weight 34600kg
Bucket Capacity 1.88m³
Rotation speed 8.3rpm
Walking speed 4.6km/h
Gradeability 70%
Maximum traction 300kN
Engine Model Cat C9 ACERT
Rated power 208kW
Packging & Delivery
-
Min Order1 piece
Briefing
Kate excavator 336D2 China second-hand excavator export, bare car price RMB 268,000
Detailed
High-quality second-hand excavator, available now, on-site inspection available, complete certificates, limited quantity, please contact us~
Kate 336D2 parameters
Specifications
- Machine operating weight: 34600kg
- Bucket capacity: 1.88m³
- Boom length: 6500mm
- Arm length: 2800mm
Performance
- Swing speed: 8.3rpm
- Travel speed: 4.6km/h
- Climbing ability: 70%
- Maximum traction: 300kN
Power system
- Engine model: Cat C9 ACERT
- Rated power: 208kW
- Displacement: 8.8L
- Bore × stroke: 112mm × 149mm
Hydraulic system
- Main pump maximum flow: 281L/min
- Pilot pump flow: 40L/min
- Pilot oil circuit pressure: 4MPa
- Main overflow set pressure: 35MPa
Oil capacity
- Fuel tank: 620L
- Hydraulic oil tank: 175L
- Hydraulic system: 410L
- Engine oil change volume: 41L
- Coolant: 40L
Main body dimensions
- Total length for transport: 11210mm
- Total width for transport: 3190mm
- Total height for transport: 3670mm
- Cab height: 3140mm
- Total length of crawler tracks: 4590mm
- Shoe width: 600mm
- Track gauge: 2590mm
- Minimum ground clearance: 510mm
- Counterweight ground clearance: 1220mm
- Rear end swing radius: 3490mm
Operation range
- Maximum digging radius of parking surface: 11760mm
- Maximum digging depth: 8210mm
- Maximum digging height: 10730mm
- Maximum unloading height: 7510mm
- Maximum vertical digging depth: 6290mm
