Doosan excavator DH225LC-9 China second-hand excavator export
- group name
- Building Machinery
- Min Order
- 1 piece
- brand name
- Yitongda China Used Cars for Sale
- Nearest port for product export
- CHINA CN, CNNSA, CNSZN, CNTXG
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Tue, 01 Jul 2025 15:46:00 GMT
Paramtents
Machine working weight 22200kg
Bucket Capacity 0.39 - 1.49m³
Boom length 5700mm
Rotation speed 12.4rpm
Walking speed 5.4/3.1km/h
Engine Model DE08TIS
Packging & Delivery
-
Min Order1 piece
Briefing

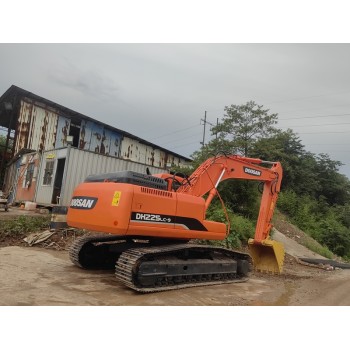

Doosan excavator DH225LC-9 China second-hand excavator export, bare car price RMB 168,000
Detailed
High-quality second-hand excavator, available, on-site inspection, complete certificates, limited quantity, please contact us~
Doosan DH225LC-9 Excavator Parameters
Specifications
- Machine operating weight: 22200kg
- Bucket capacity: 0.39 - 1.49m³
- Boom length: 5700mm
- Dipper arm length: 2900mm
Performance
- Rotation speed: 12.4rpm
- Travel speed: 5.4/3.1km/h
- Ground pressure: 46Kpa
- Bucket digging force: 136.3/144.1kN
- Digging force of bucket arm: 97.1/102.9kN
Power system
- Engine model: DE08TIS
- Rated power: 110kW/1950rpm
- Displacement: 8.071L
- Number of cylinders: 6
Hydraulic system
- Main pump type: variable piston pump
- Main pump maximum flow: 2×211L/min
- Working hydraulic oil circuit: standard 32.4MPa/boost 34.3MPa
- Travel hydraulic circuit: 32.4MPa
- Rotation hydraulic circuit: 27.5MPa
Oil capacity
- Fuel tank: 350L
- Hydraulic oil tank: 240L
- Engine oil change: 28L
- Coolant: 42L
Main body dimensions
- Total transport length: 9600mm
- Total transport width: 2990mm
- Total transport height: 3000mm
- Counterweight ground clearance: 1105mm
- Minimum ground clearance: 480mm
- Total track length: 4440mm
- Track shoe width: 600mm
- Track gauge: 2390mm
Operating range
- Maximum digging radius: 9910mm
- Maximum digging radius of parking surface: 9735mm
- Maximum digging depth: 6625mm
- Maximum digging height: 9660mm
- Maximum unloading height: 6810mm
- Maximum vertical digging depth: 6045mm
