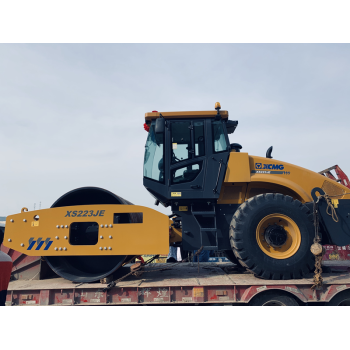

XCMG XS223JE single steel wheel vibratory roller high efficiency energy saving roller
- group name
- Trucks
- Min Order
- 1 piece
- brand name
- Yitongda China Used Cars for Sale
- model
- XCMG XS223JE
- Nearest port for product export
- CHINA CN, CNNSA, CNSZN, CNTXG
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Wed, 04 Dec 2024 16:31:08 GMT
Packging & Delivery
-
Min Order1 piece
Briefing
XCMG XS223JE single-drum vibratory roller uses a low-speed engine and hydraulic damping control technology, which has significant energy-saving and noise-reduction effects; the optimized transmission system effectively improves compaction performance and efficiency;
Detailed
Product Description
Performance characteristics：
1. The use of Shanghai Diesel National III high-pressure common rail electronically controlled low-speed diesel engine achieves the best fuel consumption working area, reducing the overall fuel consumption by 10%;
2. The low-speed diesel engine reduces noise emissions and enhances the sealing of the whole machine, reducing the noise of the whole machine by 2 decibels;
3. Optimize the matching of the transmission system to achieve the best compaction operation speed, and improve the operation efficiency by 8%;
4. The speed of clutch engagement is improved from the original manual control to system intelligent control, which solves the impact of human factors on the system and greatly improves the reliability of the clutch system;
5. The front hood has a large opening angle, and the electric lifting device can safely stop the hood at any position during the lifting process, and the system components are easy to maintain;
Specifications
|
Type
|
|
X3223JE |
|
Working mass (kg)
|
22000 | |
|
Drive wheel distribution mass (kg)
|
11000 | |
Vibrating wheel distribution mass (kg) | 11000 | |
Static linear load (N/cm) | 516 | |
Vibration frequency (Hz) | 28/33 | |
|
Theoretical amplitude (mm)
|
1.86/0.93 | |
Exciting force (kN) | 374/290 | |
速度范围（km/h） | I | 2.69 |
II | 5.25 | |
III | 11.12 | |
I | 2.66 | |
Ⅱ | 5.27 | |
Wheelbase(mm) | 3230 | |
Compacting width (mm) | 2130 | |
Theoretical climbing ability (%) | 30 | |
Minimum turning radius (mm) | 6500 | |
Vibrating wheel diameter (mm) | 1600 | |
Minimum ground clearance (mm) | 440 | |
Engine rated power (kW) | 140 | |
Overall dimensions (length x width x height) (mm) | 6320×2390×3200 |
