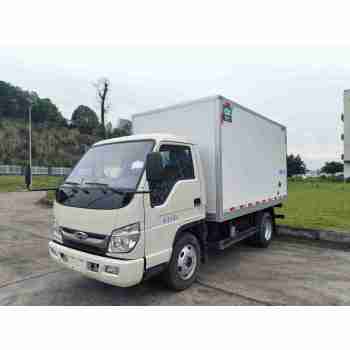

Zhongyidi brand DKV5040XLCBJ6AF complete vehicle van refrigerated truck
- group name
- Trucks
- Min Order
- 1 piece
- brand name
- Yitongda China Used Cars for Sale
- model
- Zhongyidi brand DKV5040XLCBJ6AF complete vehicle van refrigerated truck
- Nearest port for product export
- CHINA CN, CNNSA, CNSZN, CNTXG
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Wed, 04 Dec 2024 16:40:30 GMT
Paramtents
Box length level 3530 3500(mm)
Total mass 4495(Kg)
Engine model All diesel Q23-115E60
Approach angle 20
Box length level 4.2m
Front track width 1495mm
Type Truck
Rated load 1.995tons
Tonnage level Light truck
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
1. The entire vehicle's box board adopts Australian Maxtone technology for overall vacuum negative pressure molding, with solid bonding, smooth and flat surface, high strength and good toughness of the box board.
2. The foundation material of the entire vehicle's box board adopts the best raw materials in China, including fiberglass steel plate, insulation material, structural adhesive, grid cloth, I-beam profiles, etc. The basic material suppliers are all internationally renowned enterprises.
3. The entire vehicle body adopts a peripheral embedded rectangular steel pipe frame welded and bonded for sealing assembly, with high strength and good sealing performance of the body.
4. The subframe is fully optimized and has undergone phosphating surface painting treatment, which is welded to the box body as a whole to ensure the overall strength and stiffness of the upper box body. The box body is reliable and durable.
5. The appearance profile adopts wide body and thick aluminum alloy profiles, and the surrounding door frames, edges, and accessories are all made of 304 stainless steel.
refrigerated truck
|
Announcement model
|
BJ1045V9JB5-54-54
|
Type
|
Truck
|
|
Drive form
|
4X2
|
Wheelbase
|
3360mm
|
|
Box length level
|
4.2m
|
Engine
|
All diesel Q23-115E60
|
|
Transmission
|
Wanliyang WLY5TS32
|
Body length
|
5.995m
|
Body width | 1.91m | Body height | 2.2m |
Front track width | 1495mm | Rear track width | 1435mm |
Vehicle weight | 2.35 tons | Rated load | 1.995tons |
Total mass | 4.475 tons | Maximum speed | 105KM/h |
Origin | Zhucheng, Shandong | Tonnage level | Light truck |
Approach angle | 20° | Departure angle | 16° |
Segmented markets | Transportation of building materials and agricultural and sideline products | Front/rear suspension | 1.13/1.47m |
Engine parameters | |||
Engine model | All diesel Q23-115E60 | Engine brand | All diesel |
Engine commonly known as | All diesel 2.3L | Number of cylinders | 4 |
Fuel type | diesel oil | Cylinder arrangement | Inline |
Displacement | 2.3L | Emission standards | VI |
Maximum output power | 85kw | Maximum horsepower | 115hp |
Maximum torque | 320N·m | Maximum torque speed | 2000RPM |
Rated speed | 3000RPM | Engine type | Inline four cylinder, water-cooled, four stroke, turbocharged intercooled, high-pressure common rail |
Container parameters | |||
Container form | Railing type | Container length | 4.2m |
Box width | 1.81 | Container height | 0.36m |
Cab parameters | |||
Number of passengers allowed | 2 | Number of seat rows | Single Row |
Transmission parameters | |||
Transmission model | Wanliyang WLY5TS32 | Transmission brand | Wanliyang |
Shift method | Manual | Forward gear | 5th gear |
Number of reverse gears | 1 | ||
Chassis parameters | |||
Allowable load of front axle | 1610KG | Allowable load of rear axle | 2865KG |
Number of springs | 7/7+5 | ||
tyre | |||
Tire specifications | 6.50R16LT 10PR | Number of tires | 6 |
Handling configuration | |||
ABS anti lock | ● | ||
