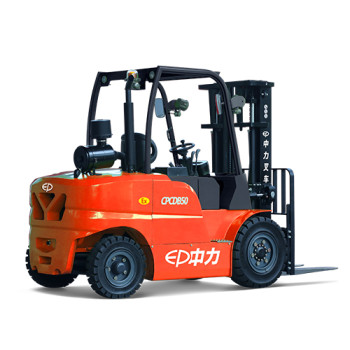

Zhongli CPCDB 4.0/4.5/5.0 t counterweight internal combustion explosion-proof forklift

Zhongli CPCDB 4.0/4.5/5.0 t counterweight internal combustion explosion-proof forklift
Zhongli CPCDB 4.0/4.5/5.0 t counterweight internal combustion explosion-proof forkliftZhongli CPCDB 4.0/4.5/5.0 t counterweight internal combustion explosion-proof forkliftZhongli CPCDB 4.0/4.5/5.0 t counterweight internal combustion explosion-proof forklift
group name
Forklifts
Min Order
1 piece
brand name
Yitongda China Used Cars for Sale
model
Zhongli CPCDB40/45/50
Nearest port for product export
CHINA CN, CNNSA, CNSZN, CNTXG
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
update time
Wed, 25 Dec 2024 03:03:05 GMT

Paramtents

  • Maximum lifting height of standard mast 3000mm

  • Power type internal combustion

  • Rated load 4500kg

Packging & Delivery

  • Min Order1 piece

Briefing

Zhongli CPCDB 4.0/4.5/5.0 t counterweight internal combustion explosion-proof forklift

Detailed

Zhongli CPCDB40/45/50
Zhongli CPCDB40/45/50
Zhongli CPCDB40/45/50  Advantages Introduction

Internal combustion explosion-proof forklift with independent intellectual property rights;



Overall explosion-proof design, high explosion-proof reliability and superior performance;



Full intelligent control of the whole machine, including the whole machine temperature rise control, automatic engine shutdown control, engine exhaust temperature control, combustible gas concentration sensing system, insulation monitoring system of the whole machine and a series of self control systems;

The unique three cycle cooling system ensures the low temperature rise of the whole machine;

Hydraulic wet power braking is adopted, with large braking torque and reliable performance;

Stepless speed regulation, stable operation, good controllability;

Streamlined design, beautiful appearance;

The explosion-proof sign is Ex de ib s B T4 Gb/Ex tD ibD A21 IP65 T135 . It is suitable for use in explosive gas environment (Zone 1 and 2) and non-conductive dust environment (Zone 21 and 22) and other places with high explosion-proof requirements, such as handling and loading in production, warehouse and other places with explosive environment in petrochemical, military, pharmaceutical, paint, coal chemical, powder, distillery and other industries;

The pertormance parameters
model
CPCDB50
CPCDB40
CPCDB45
Power type
internal combustion
internal combustion
internal combustion
Rated load
5000kg
4000kg
4500kg
Load center distance
500mm
500mm
500mm
Dead weight (including battery)
7600kg
7500kg
7600kg
Front wheel size (diameter × Width)
300-15
300-15
300-15
Lowest height of mast after lowering
2320mm
2320mm
2320mm
Maximum lifting height of standard mast
3000mm
3000mm
3000mm
Height of protective roof (cockpit)
2430mm
2430mm
2430mm
Vehicle length
4000mm
4000mm
4000mm
Overall width
1470mm
1470mm
1470mm
Fork size
1070mm
1070mm
1070mm
Minimum ground clearance of vehicle body
125mm
125mm
125mm
Turning radius
2700mm
2700mm
2700mm
Minimum right angle channel width
4525mm
4525mm
4525mm
Travel speed, full load/no load
13/17km/ h
13/17km/ h
13/17km/ h
Lifting speed, full load/no load
0.31m/ s
0.31m/ s
0.31m/ s
Maximum gradient, full load/no load
13%
15%
13%
Rated power of explosion-proof engine
57.5kw
57.5kw
57.5kw
Explosion proof grade
Ex de ib s ⅡB T4 Gb/Ex tD ibD A21 IP65 T135℃
Ex de ib s ⅡB T4 Gb/Ex tD ibD A21 IP65 T135℃
Ex de ib s ⅡB T4 Gb/Ex tD ibD A21 IP65 T135℃
Zhongli CPCDB40/45/50
Zhongli CPCDB40/45/50
Zhongli CPCDB40/45/50
